Infinity BassLink DC

SKU: BASSLINKDC
Powered subwoofer with 200-watt amp and 10" sub
$699.00

Free shipping for orders over $100.
$9.95 flat shipping for orders under $100.
1 year limited warranty.

Product Description

Details

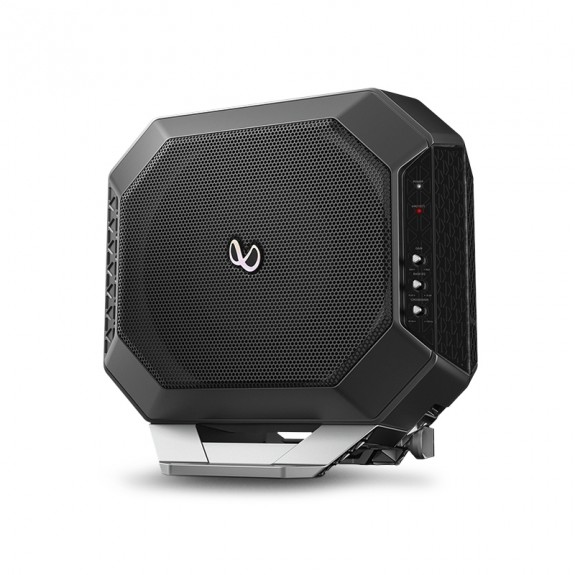

Infinity integrated subwoofer system with 10" driver and 10" passive radiator delivers big bass with 200W RMS amp and high-tech compact enclosure. Subwoofer upgrade is now possible in applications where custom boxes would not normally fit. Quick-disconnects and quick-release connections enable easy hook-up. Given size, shape, and sound, the BassLink DC can maximize bass response for virtually any vehicle.

Features

Less than one cubic foot

You crave high-performance bass, but you don't want to use all of your available cargo space to get it. The master designers at Infinity put the same state-of-the-art technology that distinguishes Infinity speakers into the BassLink DC amplified subwoofer, so, although it takes up less than one cubic foot of trunk space, it'll produce resounding bass in any vehicle.

200 watts of bass power

The BassLink DC brings together a 10" subwoofer, a 10" passive radiator, and an extremely efficient, specially designed 200-watt Class D amplifier that all work together as an integrated system. The passive radiator gives you the increased efficiency of a ported enclosure, but without the problem of port noise. The amplifier also includes a limiter/compressor to monitor system function at peak power levels.

Plenty of control

An array of controls will enable you to tweak your bass until it has just the thump you want. For optimum blending, you can adjust the low-pass filter between 50 and 120 Hz to get the right bass for your system, while the phase switch (0- or 180-degrees) ensures your BassLink is firing in unision with the rest of your speakers. Adjust low bass impact with the bass EQ feature, which controls the amount of punch at 40 Hz.

Easy removal

Best of all, just pull out the quick-disconnect wiring plug and pop the sub out of its mounting bracket, and you've instantly added storage space in your vehicle. Just reverse the process, and you've got your bass back in less than ten seconds.

Suitable for marine and off-road use

The glass-reinforced ABS enclosure is water-resistant and suitable for marine and off-road applications.

What’s in the box

  • 1x Amplified subwoofer
  • 1x 25-amp ATO fuse (installed)
  • 1x 8" Wiring harness
  • 1x Mounting base
  • 4x 1" Screws
  • 4x Flat washers
  • 1x Installation instructions

Technical Specifications

Additional Information

Show Buy Now Button Yes
SD Card test

Technical Specifications

General Specifications

DESCRIPTION
Class D 200-watt amplifier
Water-resistant
Suitable for marine and off-road applications
Low-pass Crossover Variable
50-120 Hz at 12 dB per octave
FREQUENCY RESPONSE
20-120 Hz
Bass Boost Adjusts
-6 dB to +3 dB at 40 Hz
