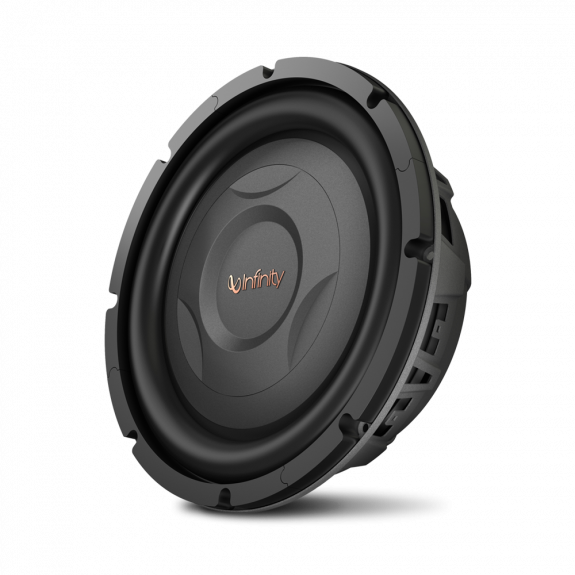

REFERENCE 1200S

SKU: REF1200S
This boom is made for all shapes and sizes.
Sign up to get notified when this product is back in stock
$229.00

Free shipping for orders over $100.
$9.95 flat shipping for orders under $100.
1 year limited warranty.

Product Description

Details

Infinity’s latest Reference subwoofers offer incredible installation flexibility. Their low-profile design allows them to fit perfectly into even the most shallow of enclosures — great for today’s compact cars. Polypropylene woofer cones deliver exceptional bass response at frequencies as low as 27Hz. But what makes these subs really stand out is their Harman-proprietary SSITM (Selectable Smart Impedance), which allows the subwoofer to present the amplifier with either a 2 or 4 ohm load at the flip of a switch.

Features

Low-Profile Design

Because today’s compact cars offer less space, the Infinity Reference Subwoofers are designed to fit into small enclosures. They’re slim, sleek, stylish, and don’t sacrifice on sound.

Harman-Proprietary SSITM (Selectable Smart Impedance)

Unlike most dual-voice coil woofers, which provide either 1 or 4 ohms or 2 or 8 ohms, the Infinity Reference Subwoofers allow the listener to 2-ohm and 4-ohm at the flip of a switch, providing the two most often used impedances from a single woofer. This allows the system designer unparalleled flexibility in extracting every last watt from your amplifier without compromising stability and thermal safety margins.

Frequency Response As Low as to 27Hz

Your audio is filled with delicious sounds. Unfortunately, you’re not always hearing them all. With lows that dig down into the depths of 27Hz, you’ll hear the low-end frequencies you’ve been missing.

OEM-Level Reliability Testing

Infinity tests every speaker design to the same rigid specifications as the automakers, subjecting them to extreme conditions that would break lesser speakers. We freeze them, bake them, shake them, blast them with ultraviolet light and drive them at full power for days to make sure your audio investment lasts for years.

What’s in the box

  • 1x Reference 1200s subwoofer
  • 1x Owner's Manual
  • 1x Technical Data Sheet

Technical Specifications

Additional Information

Show Buy Now Button Yes
SD Card test

Technical Specifications

General Specifications

Type
12” Shallow Mount Subwoofer

Audio Specifications

Nominal Impedance
2 ohm or 4 ohm, switch selectable
Power Handling (RMS)
250W
Sensitivity
92dB
Power Handling (Peak)
1000W
Frequency Response
27 – 175 Hz

Dimensions

Diameter (in)
12-1/4"
Mounting Diameter (in)
11-1/8"
Mounting Depth (in)
3-5/16"

Manuals

The latest owner's manuals, quick start guides, and documents.
